AC & AC/DC
Current Clamp Adaptors
Products › (Electrical or Automotive) › Accessories › AC & AC/DC Current Clamp Adaptors
BNC Connectors
*Also available with BNC connectors for use with our range of oscilloscopes and automotive diagnostic scopes.
  • Extend the versatility of your multimeter
  • Three options to choose from in AC only or AC/DC
  • Use on the mV range of your meter
  • Each has a fixed curly cord & 4mm banana connectors*
CA60 Clamp Adaptor

Easy push-button Zero Set

 CA600 Clamp Adaptor

Good choice for automotive
starter motor current

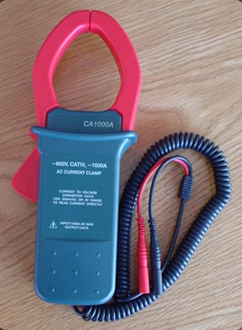

 CA1000 Clamp Adaptor

Large 75 x 57mm Jaw Size
  CA60 AC/DC Clamp Adaptor CA600 AC/DC Clamp Adaptor CA1000 AC Clamp Adaptor
Measurement Range: 0 to 60 Amps DC & AC 0 to 600 Amps DC & AC 0 to 1000 Amp AC
Bandwidth: 40Hz to 20kHz 50 to 400Hz 50 to 400Hz
Output: 1mV/10mA: 1mV~2VDC or ACRMS
1mV/100mA: 1mV~600mVDC or ACRMS		 1mV/1A 0 to 1 Volt AC RMS;
Output Ratios: 1:10 And 1:100 1:1000 1:1000
Basic Accuracy: ±(2% + 2mV) ±(2% + 2mV) @ 50~60Hz:
0 to 399A: ±(1.5% + 2A)
400 to 1000A: ±(2% + 3A)
Jaw Size (ID): 9mm 30mm 57mm
Safety: EN 61010-1 CATII   EN 61010-1 CATII
Dimensions: 195(H) x 70(W) x 33mm, 250gm 178(H) x 70(W) x 33mm, 290gm 264(H) x 100(W) x 44mm, 400gm
Battery: Standard 9V Battery Standard 9V Battery No battery required
Pricing*: NZ$213.00* NZ$192.00* NZ$89.00*
Price* with BNC Connector: NZ$287.00* NZ$287.00* -

*15% GST applicable for sales within NZ
