Light Meters
LX103, LX105, LX107
Products › Environmental Instruments › Light Meters › LX103, LX105, LX107
Choose from the entry level LX103 or with the extensive features below, the LX105* & LX107
  • Four Selectable Light Sources
  • No Conversion Tables Needed
  • Relative % Mode for Easy Light Level Comparisons
  • Recall Min, Max & Average
  • "Zero Set" for Maximum Accuracy
  • RS232 Port on LX105*
Involved in lighting sales or service?
The Relative % Mode (LX105 only) really helps to see "how dark" an area is: Holding the sensor in an area of optimum light level, push the % button. This level is now recorded as 100%. Now move the sensor to another area. The meter will display this new level as a % of the first.
You and your clients can now see that the new area is (say) 40% darker than the optimum light level and you can both make informed decisions on the need for additional lighting.

Using the Metermaster LX105 or LX107 Broad-Spectrum Light Meters means the end of slow conversion tables. When you want to measure different light sources (fluorescent or incandescent for example) just switch to that type and the meter automatically corrects for wavelength differences.

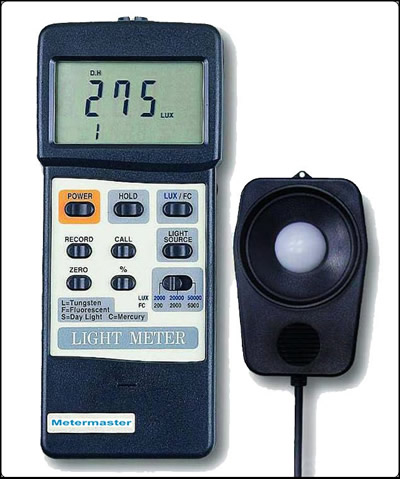

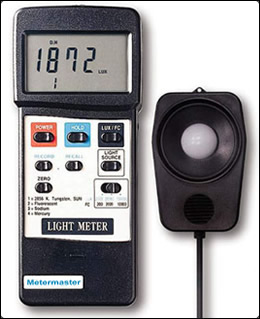

 LX103 Light Meter LX105 Light Meter LX107 Light Meter
LX 103 LX 105 LX 107
Input: Colour corrected photo diode sensor on 1 meter curly cord
Light Sources Selectable: Tungsten, Fluorescent, Mercury Tungsten, Fluorescent, Mercury, Daylight Tungsten, Fluorescent, Mercury, Daylight, Sodium
Measurement Ranges:
Lux or Ft candles)		 0 to 2000 Lux @ 1 Lux Resolution
2000 to 20 000 Lux @ 10 Lux Res
20 000 to 50 000 Lux @ 100 Lux 		0 to 2000 Lux @ 1 Lux Resolution
2000 to 20 000 Lux @ 10 Lux Res
20 000 to 100 000 Lux @ 100 Lux
0 to 2000 Lux @ 1 Lux Resolution
2000 to 20 000 Lux @ 10 Lux Res
20 000 to 50 000 Lux @ 100 Lux
Accuracy: ±(5% + 2 Dgts) ±(4% + 2 Dgts) ±(5% + 2 Dgts)
Other Functions: Lux/FC Selection Light Type Select, Zero Set, Hold, Min/Max/Average Record/Recall, LCD Contrast, Lux/FC Selection Light Type Select, Zero Set, Hold, Min/Max/Average Record/Recall, LCD Contrast, Lux/FC Selection
Dimensions:
(Excluding Sensor)		 131(H) x 70(W) x 25mm, 195gm 180(H) x 72(W) x 32mm, 335gm 180(H) x 72(W) x 32mm, 335gm
Battery: Std 9V (Not included)
Pricing*: NZ$272.00* NZ$506.00* NZ$381.00*

*15% GST applicable for sales within NZ
