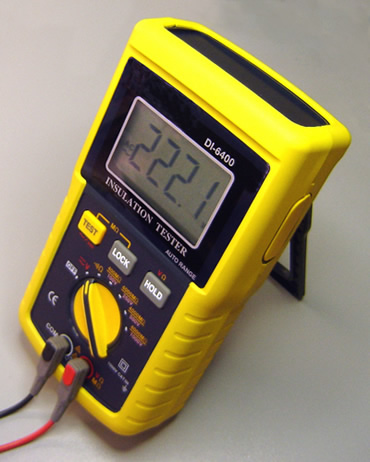

| DI6400 Digital Insulation Testerwith Mutimeter Functions |
|
Products ›
Electrical ›
Insulation Testors ›
DI6400 Digital Insulation Tester
|
|
|
| NZ$657.00* |
*15% GST applicable
for sales within NZ |
| Legal and Where to Buy |
| Sitemap |
| Rev.10.06.08. |
| With automatic circuit discharge & its bright yellow test button, the 6400 is all about safety. |
|
Beyond the four different insulation test voltages, this instrument also includes autoranging AC &
DC voltage measurement and for testing relay coils and motor windings, precision low resistance ranges.
|
|
|
|
• |
4 Insulation Test Voltages |
| • |
Automatic Circuit Discharge |
| • |
Autoranging AC/DC Volts & Ohms Ranges |
| • |
Auto Zero Adjust |
| • |
Continuity Beeper |
 |
|
 |
| SPECIFICATIONS |
| Insulation Test Ranges: |
4, 40, 400 & 4000MΩ (autoranging) @ 250V, 500V or 1000V
4, 40 & 400 MΩ (autoranging) @ 100V |
| Volts: |
DC 100mV to 600V ±(1.5% Rdg + 2 Dgts)
AC 100mV to 600V ±(1.5% Rdg + 2 Dgts) |
| Resistance: |
0.1Ω to 4kΩ |
| Other Functions: |
Continuity beeper, display hold, test lock, over range & low battery indicator, automatic zero adjust & automatic circuit discharge |
| IEC Rating: |
1010-1 CAT III 1000V |
| Battery: |
1.5V AA x 8 (not included) |

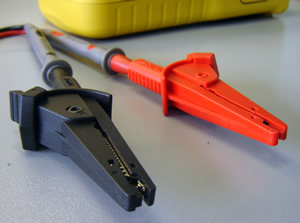

| Accessories Included: |
Heavy duty test leads with removable alligator clips. |
|
 |
 |
