| SPECIFICATIONS: |
| Volts: |
DC 100µV to 1000V ±(0.1% Rdg + 2 Dgts)
AC 100µV to 750V ±(1% Rdg + 5 Dgts)*
|
| Current: |
DC 0.1µA to 20A ±(1% Rdg + 1 Dgt)
AC 1µA to 20A ±(1.5% Rdg + 4 Dgts)*
* @ 50~500Hz |
| Resistance: |
0.1Ω to 40MΩ ±(0.4% Rdg + 2 Dgts) |
| Frequency: |
1Hz to 40MHz ±(0.1% Rdg + 3 Dgts) |
| Temperature: |
-50 to 1300ºC ±(0.8% Rdg + 2º) |
| Capacitance: |
0.1 to 90% ±(2% Rdg + 1 Dgt) |
| mS Pulse: |
0.01 mS to 39.9 mS ±(2% Rdg + 1Dgt) |
| Frequency: |
0.01Hz to 400kHz ±(0.1% Rdg + 4 Dgts) |
| Temperature: |
-50°C to 1100°C, ±(1% Rdg + 2°C) |
| Capacitance: |
1pF to 40 000µF ±(3% Rdg + 5 Dgts) |
| Other Ranges: |
Min, Max & memory Recording, Diode Test, Hold, Relative Zero, PC Data Logging & Continuity Beeper |
| IEC Rating |
1010-1 CATIII 1000V |
| Dimensions: |
198(H) x 90(W) x 44mm, 400gm |
| Battery: |
Std 9V |
| Accessories Included: |

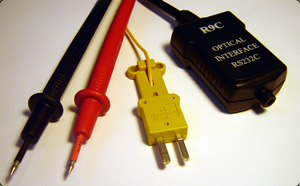

Test Leads, Bead Temperature Probe, RS232 Cable,

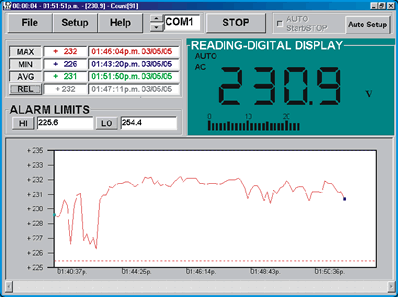

Windows Data Logging Software and Battery |
