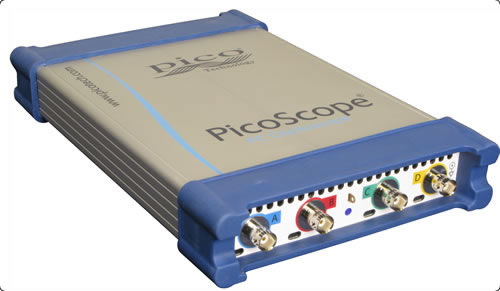

PicoScope 6000 Series USB Oscilloscopes
Products › (T & M or Data Acquisition › Pico) › Oscilloscopes › PicoScope 6000 Series
	Ultimate performance. Ultimate value for money With 4-channels, 350MHz bandwidth and 5GS/s real-time sampling, the PicoScope 6000 Series are the ultimate USB oscilloscopes. A quantum leap in PC-based test equipment, the PicoScope 6000 Series offer world-beating performance together with all the features you would expect from a PicoScope oscilloscope.

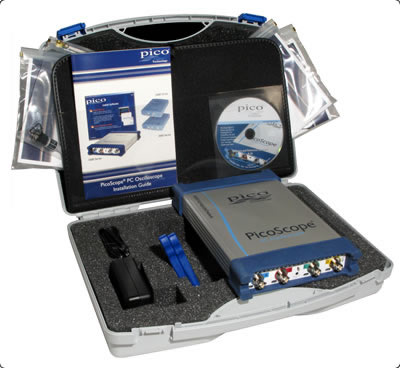

What's in the kit • PicoScope 6000 Series oscilloscope • 4 x 10:1 oscilloscope probes • USB cable • Universal AC adaptor • Tough carry case • PicoScope oscilloscope software • Free software updates	Two decades of PC-based design experience and listening to your needs and desires has resulted in the PicoScope 6000 Series — the ultimate in USB oscilloscope design
	•  4 channels •  350MHz bandwidth •  5GS/s real-time sampling •  Up to 1GS memory •  Integrated function and arbitrary waveform generator High bandwidth, high sampling rate With a 350 MHz analog bandwidth complemented by a real-time sampling rate of 5GS/s, your PicoScope 6000 Series scope can display single-shot pulses with 200ps time resolution. ETS mode boosts the maximum sampling rate even further, allowing a more detailed display of repetitive pulses.	More buffer memory than any other oscilloscope The PicoScope 6403 gives you the deepest buffer memory available as standard on any oscilloscope. Other oscilloscopes have high maximum sampling rates, but without deep memory they cannot sustain these rates on long timebases. The PicoScope 6403’s huge 1-gigasample buffer allows you to capture at 5GS/s down to 20ms/ div — that’s a total duration of 200ms. Managing all this data calls for some powerful tools, so PicoScope has a maximum zoom factor of 100 million combined with a choice of two zoom methods. There’s a conventional set of zoom controls, plus an overview window that shows you the whole waveform while you zoom and reposition the display by simply dragging with the mouse. Advanced triggers As well as the standard range of triggers found on most oscilloscopes, your PicoScope 6000 Series scope has a built-in set of advanced triggers to help you capture the data you need.

Pricing*: 6402 Kit   NZ$8024.00* 6403 Kit   NZ$10297.00* *15% GST applicable for sales within NZ Legal and Where to Buy Sitemap Rev.10.10.06. Custom probe settings The custom probes feature allows you to correct for gain, attenuation, offsets and nonlinearities in special probes, or to convert to different units of measurement. You can save definitions to disk for later use. Definitions for standard Pico-supplied probes are included.

High-speed data acquisition The drivers and software development kit (SDK) supplied allow you to write your own software or interface to popular third-party software packages. If the 1 gigasample record length isn’t enough, the drivers support data streaming, a mode that captures gap-free continuous data through the USB port directly to the PC’s RAM or hard disk at a maximum (PC-dependent) rate of 13MS/s. Ultimate performance, ultimate value for money With 4 channels, 350MHz bandwidth, 5GS/s real-time sampling and up to 1GS memory, the PicoScope 6000 Series are the ultimate USB oscilloscopes. A quantum leap in PC-based test equipment, the PicoScope 6000 Series give you world-beating performance together with all the features you would expect from a PicoScope oscilloscope. And — unlike other manufacturers — all features are included in the initial cost (when new features are added you simply need to download a free copy of the software). If you want the ultimate performance and the ultimate value for money, you want a PicoScope 6000 Series oscilloscope. Rapid triggering The PicoScope 6000 Series has high-speed circuitry that can trigger on and capture over 1 million waveforms a second, increasing your chances of spotting an infrequent glitch.

PicoScope 6402 and 6403 USB Oscilloscope Specifications
Variant	PicoScope 6402 Kit	PicoScope 6403 Kit
Bandwidth	350MHz (-3 dB) with TA101 probes or on 50Ω setting; switchable 20MHz bandwidth limiters
Channels	4
Vertical resolution	8 bits
Enhanced vertical resolution	12 bits
Dynamic range	48dB
Accuracy	±3%
Rise Time	1.0ns (10% to 90%)
Input ranges (full scale)	±50mV to ±20V in 9 ranges (up to ±5V when 50Ω input selected)
Input characteristics	1MΩ in parallel with 15pF (AC or DC) or 5Ω (DC only)
Input type	Single-ended, BNC connector
Input coupling	Software selectable AC/DC
Overload protection	±100V to ground (1MΩ inputs), 5.5V RMS (50Ω inputs)
Maximum sampling rate (single shot) One channel in use Two channels in use 3 or 4 channels in use	5GS/s 2.5GS/s 1.25GS/s
Maximum sampling rate (continuous streaming mode)	13MS/s (Record length limited to 1GS in PicoScope, unlimited when using the supplied API)
Buffer memory (shared between active channels)	32MS	1GS
Waveform buffer	Up to 1000 waveforms
Timebase ranges	1ns/div to 200s/div
Timebase accuracy	5ppm

Triggers
Source	Any input channel or AUX input
Basic triggers	Auto, rapid, repeat, single, none
Advanced triggers	Rising edge, falling edge, edge with hysteresis, logic level, pulse width, runt pulse, dropout, window, delayed
Trigger level	Adjustable over whole of selected voltage range
Re-arm time	Less than 1µs on fastest timebase
Maximum pre trigger delay	100% of capture size
Maximum post trigger delay	4 billion samples
Top of Page

Arbitrary Waveform Generator
Arbitrary waveform buffer	16384 samples
Standard waveforms	Sine, square, triangle, ramp (up/down), sin (x)/x, Gaussian, half-sine, white noise, DC level
Bandwidth	DC to 20MHz
Sample rate	200MS/s
Output characteristics	BNC, 50Ω
Resolution	12 bits
DC accuracy	1%
Amplitude range	±250mV to ±2V (±2.5V with DC offset)
DC offset	±1V (max. combined output ±2.5V)

Auxiliary Input (AUX)
Input impedance	50Ω
Input coupling	DC
Maximum input voltage	±5V
Input threshold	±1V

Probe Calibration Output
Signal output type	1kHz square wave, 2V pk-pk, 600Ω

Spectrum Analyser
Bandwidth	350MHz
Frequency range	DC to 350MHz
Maximum number of bins	1,048,576
Display modes	Magnitude, peak hold, average
Window types	Rectangular, Gaussian, triangular, Blackman, Blackman-Harris, Hamming, Hann, flat-top

PC Requirements
Minimum	Processor: Pentium II processor, or equivalent Memory: 64MB (XP) / 512MB (Vista) / 1GB (Win 7) minimum Operating system: 32 or 64-bit edition of Microsoft Windows XP SP2, Vista or Windows 7 Ports: USB 2.0 compliant port
Recommended	Processor: 2GHz Pentium IV processor, or equivalent Memory: 256MB (XP) / 1GB (Vista / Win 7) Operating system : 32 or 64-bit edition of Microsoft Windows XP SP2 (or above), Vista or Windows 7 Ports: USB 2.0 compliant port
Top of Page

Environmental
Operating environment Temperature range	0°C to 40°C (20°C to 30°C for quoted accuracy)
Storage environment Temperature range Humidity	-20°C to +60°C 5% to 95% RH, non-condensing

Physical Dimensions
Dimensions	255 x 170 x 40mm (approx 10 x 6.7 x 1.6in)
Weight	<1kg (approx 2.2lb)

Software
PicoScope 6 for Windows
Software development kit	A growing collection of drivers and example code for various programming languages

General
Power supply AC adaptor	AC adaptor 12V ±2V @ 3.5A External adaptor supplied (suitable for USA, UK, Europe and Australasia)
Compliance	FCC, CE,RoHS compliant

Accessories Included
Additional hardware	4 x 10:1 500Mhz/300VRMS probes, USB 2.0 cable(USB 1.1 compatible), user manuals
Software	PicoLog & PicoScope 6 CD-ROM
Documentation	User’s guide, Programmer’s guide & Installation guide
