Oscilloscope Probes

Products › (Test Accessories or T & M) › Oscilloscope Probes

Accessories Supplied with All Probes
(Also available as spares)

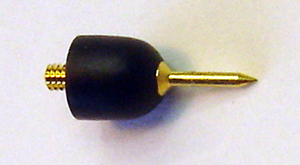

Spare Probe Tip

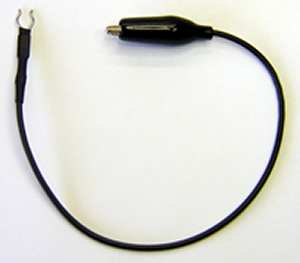

Ground Lead 22cm



Test Clip

Trimming Tool

*15% GST applicable
for sales within NZ

Legal and Where to Buy

Sitemap

Rev.10.09.10.

Your probe is the interface between you and your ‘scope and the quality and feel of that probe can make or break an oscilloscope.

Besides the excellent specifications of our PJP range and the full set of accessories supplied with each one, these probes are all superbly designed for user and equipment safety.

All have 1.2m leads and maximum input ratings of no less than 400V! The accessories are all inter-changeable and all probes are compatible with the Challenger range of SMD clips.

Model

Attenuation

Bandwidth (MHz)

Maximum Voltage (Vp)

Rise Time (ns)

S-1021

1:1/1:10 Switchable

20/150

400/600

1.8/2.3

	Our most popular ‘scope probe. A good quality general purpose probe suitable for much of the Pico Oscilloscope range NZ$127.00*
View image of complete kit

V-6021

1:100

300

1500

1.2

	One of two high voltage probes in the range. Both have enhanced BNC insulation. NZ$266.00*
View image of complete kit

V-6041

1:100

300

2500

1.2

	The second of two high voltage probes in the range. Both have enhanced BNC insulation. NZ$314.00*
View image of complete kit

H-4011

1:10

350

600

	With a 350MHz bandwidth, the 4011 is suitable for all but the very fastest Pico oscilloscope range. NZ$367.00*
View image of complete kit

M-5001

1:10

500

200

0.7

	This high stability 500MHz probe has its compensation circuitry behind the BNC connector, so has a smaller probe and is much easier to use on high density PCB’s. NZ$856.00*
View image of complete kit

DR-7012

1:1

950

AC 50V, DC 200V

	A demodulating probe, the 7012 output is a DC voltage equal to the peak to peak value of the measured waveform. Includes BNC adaptor pictured below. NZ$264.00*
View image of complete kit
