Two Models
to choose from |
| • |
Check Phase Sequence |
| • |
Check for
Correct Wiring |
| • |
Motor Rotation Field Tester (RT608 Only) |
| Prices* |
| RT606: NZ$133.00* |
| RT608: NZ$292.00* |
*15% GST applicable
for sales within NZ |
 |
| Legal and Where to Buy |
| Sitemap |
| Rev.11.03.06. |
|
|
 |
 |
| SPECIFICATIONS |

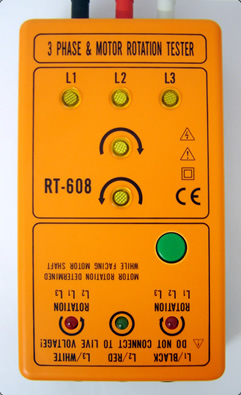

| RT608 |

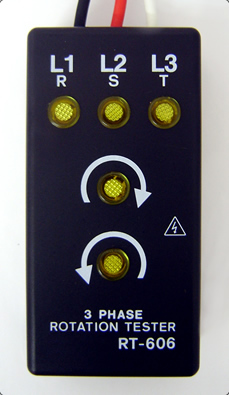

RT606 |
| Voltage Range: |
100VAC to 660VAC @ 45 to 70Hz |
| Indicators: |
Both Units: One neon per phase and two for indication of Phase Sequence |
| Indicators: RT608 Only - 3 LED’s for testing Motor Rotation Fields |
|
| Dimensions: |
150(H) x 85(W) x 40mm, 230gm |
100(H) x 50(W) x 25mm, 150gm |
| Battery: |
Std 9V (Not included) |
No battery required |
| Accessories Included: |

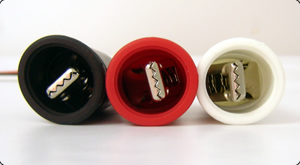

Test Lead Set with Sleeved Alligator Clips |
|
